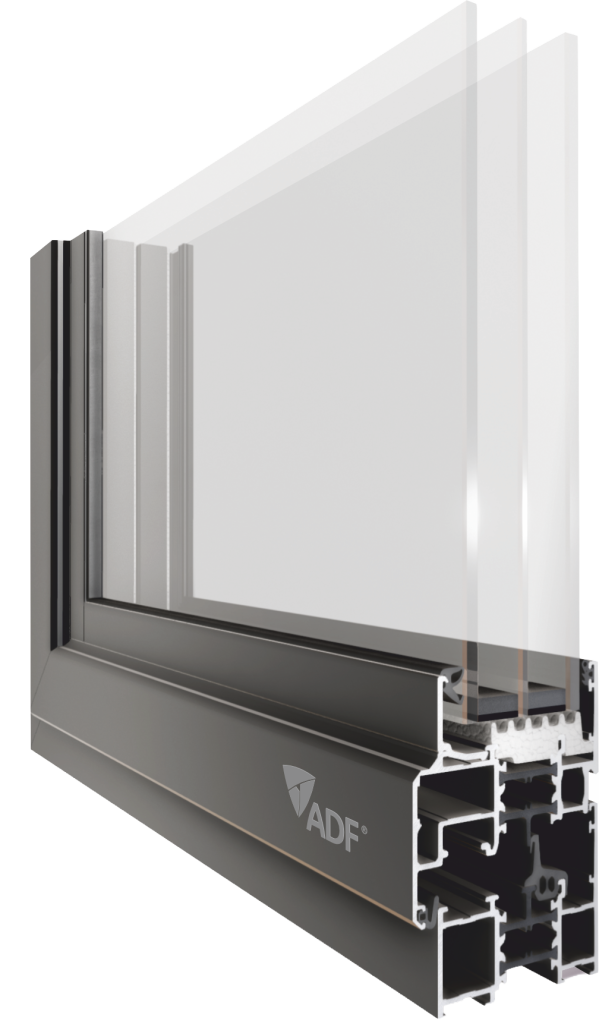

ADF SublimAL 74GR
Thermal comfort and durability

The windows and doors of the ADF SublimAL 74GR series combine elegance
with strength and durability. They allow for generous glazed surfaces
that bring natural light indoors. Aluminum is a solid,
weather-resistant and easy-to-maintain material, ensuring an impeccable
appearance in the long term and giving style and comfort to any space.

Unbeatable benefits:

Energy performance: heat transfer up to Uw: 1,1 W/m²K

Security: burglary protection up to RC 2

Construction depth: frame 65 mm, sash 74 mm

Insulating glass: triple 48 mm / double 28 mm, DuraTherm thermal spacer

Maximum tightness testing: class 4 (EN 12207)

Waterproofing: class E1350 (EN 12208)

Wind resistance: class C4 (EN 12210)

Profitability and energy efficiency​
Profitability and energy efficiency​

Insulating Glass

The main functions of a window are to protect the building and its occupants from external factors (such as extreme temperatures, noise, etc.) and to provide natural light. That is why one of the most important elements in the quality equation of a window is the glass itself.

Winter Comfort

The insulating glazing blocks the heat already present in the room while still allowing natural sunlight and warmth to pass through the glass, helping to heat the interior during the cold season.

Details

Energy Efficiency

Thanks to the airtight glazing system, heat is retained indoors during winter, while solar radiation is reflected in summer. As a result, both heating and air conditioning costs are significantly reduced.

Details

Summer Comfort

The glazing reflects two-thirds of solar radiation while still allowing natural light to enter the interior. This ensures a comfortable indoor temperature without sacrificing natural illumination.

Details

Transparency

Natural light is essential for comfort. We use glass with a high degree of transparency, ensuring excellent light transmission and reduced artificial lighting costs.

Details

Safety

Glass lamination is an effective method of protection against accidents. In the event of breakage, the shards remain attached to the plastic film (PVB) inserted between the glass panes.

Details

Security

For enhanced protection of both property and people inside, we recommend laminated safety glass, consisting of two PVB plastic interlayers placed between two glass panes.

Details

Acoustic Comfort

Acoustic glazing blocks unwanted external noise, transforming the home into a calm and comfortable living space. These glazing units contain a special plastic interlayer that prevents sound from propagating from one glass pane to another.

Details

Hardware

Maco hardware for windows and balcony doors: offers elegance, safety and premium durability, ensuring good performance and energy efficiency.

Handle

Standard window handle



Colours

You can choose from a wide range of finishes to personalize and harmoniously integrate the joinery with the architectural style. You may also opt for bi-color profiles for interior and exterior.

RAL colour palette

Discover more!

Request a quote
Romania
Italy
Belgium
Germany
Austria
France
England

Winter comfort

Thermally insulated glazing blocks the heat already existing in the room, but at the same time allows natural light and heat from the sun to penetrate through the glass, thus warming the room in the cold season.



It is possible to install larger windows without losing heat from inside the house even when it is cold outside. Comfort in winter can be increased with triple glazing which offers much better performance than single glazing.

These windows are the perfect solution for any type of home, as they combine a high level of energy efficiency with total transparency and very good light transmission.

Advantages:
• Indoor heat in winter
• More comfort and well-being

How does it work?

Thermally insulated glazing blocks the heat already present in the room, but at the same time allows natural light and heat from the sun to penetrate through the glass, thus further warming the interior space.



Maintaining an optimal temperature during winter is probably one of the most important factors determining comfort.

This can be improved by also taking into account the geographical positioning of the home, as well as the orientation and size of the windows.

Standard thermal insulation
Specific to double glazing that has a heat transfer coefficient between 1.3 and 1.0 (W/m 2 k)

Advanced thermal insulation
Specific to triple glazing that has a heat transfer coefficient between 0.7 and 0.5 (W/m 2 k)

Energy saving

Thanks to the airtight glazing system, heat is kept inside during the cold season and solar radiation is reflected during the summer. Thus, heating and air conditioning costs are significantly reduced.

High-performance glazing can substantially improve energy consumption and help reduce expenses by over 30%, compared to simple glazing.

Advantages:
• Optimization and reduction of energy consumption
• Improving energy efficiency

How does it work?

The airtight glazing system keeps heat inside while allowing natural sunlight to warm the interior of the house in winter. Thanks to high-performance glazing, less heating is needed inside. Triple glazing offers the best solution for reducing bill costs.

This solution can be improved if both the geographical position of a house and the orientation and size of the windows are taken into account.

Standard energy savings
Specifically for double glazing, cost reduction by over 30%.

Advanced energy savings
Specific to triple glazing, cost reduction of over 40%.

Summer comfort

Glazing reflects 2/3 of the solar radiation, but at the same time allows light to penetrate the interior. A comfortable temperature is maintained, without compromising on natural lighting.

Solar heat gain in the summer is reduced by high-performance glazing, so that homes do not overheat and do not require excessive air conditioning. Summer comfort is defined as the number of hours during which the indoor temperature is more comfortable than the outdoor temperature.

Advantages:
• Comfortable interior
• Increased sun protection
• Energy consumption optimization

How does it work?

Glazing reflects approximately 2/3 of the solar heat, but at the same time allows sunlight to penetrate through the glass so that the interior of the house is naturally lit. Summer comfort can also be improved if the geographical positioning of the home, as well as the size and orientation of the windows, are taken into account.

Standard solar control
Specific to glazing with a solar factor (g) between 0.42 and 0.36.

Advanced solar control
Specific to glazing with a solar factor (g) ≤ 0.35.

Transparency

Natural lighting is one of the conditions for comfort. We use glass with a high degree of transparency, for light transmission and reduced costs of artificial lighting.



Larger windows allow for natural sunlight and an open feel, while using less artificial light during the day. Natural light is an essential part of human well-being. As a transparent environment, glass allows natural light to enter homes and provides openness to the outdoors.

Advantages:
• Reducing the use of artificial light
• A positive impact on health
• Improves sleep

How does it work?
The high transparency of the glass as well as the size of the window allow for better illumination of the interior space. The geographical positioning of the home, as well as the size and orientation of the windows, must also be taken into account. In this way, daytime comfort will be considerably improved.

Transparency
Specific to glazing with a light transmission ≥ 64%.



Safety

Glass lamination is an effective method of accident protection. In the event of glass breakage, the shards remain attached to the plastic film (PVB) sandwiched between the glass panels.

It represents protection against the risk of serious accidents caused by possible glass breakage. Safety can be ensured by laminated glass windows.

Advantages:
• Reducing the risk of injury in the event of glass breakage
• Feeling safe at home

How does it work?

Laminated safety glass consists of a plastic film (PVB) sandwiched between two panes of glass. If the glass breaks, the shards remain attached to the film. The choice of glazing should be made based on the home environment as well as your safety expectations.

Safety
Specific to laminated glass windows made up of two sheets of 3 or 4 mm glass and a single PVB film.

Security

To protect property and people inside, we recommend laminated security glass, which involves two plastic films (PVB) sandwiched between two glass panels.



Security prevents possible break-ins and deters thieves in most cases. Security can be ensured by laminated glass windows.

Advantages:
• Reducing the risk of injury in the event of glass breakage
• Protection against theft and vandalism
• Feeling safe at home

How does it work?
Laminated safety glass consists of two plastic films (PVB) sandwiched between two panels of glass. This type of glass protects people and property in the event of an attack. The choice of glazing should be made based on the home environment, as well as your expectations for safety and security.

Security
Specific to laminated glass windows made up of two 4 mm sheets of glass and two PVB films.

Acoustic comfort

It blocks out disturbing noise from outside and transforms your home into a calm space to live in. Acoustic glazing contains a special plastic film that prevents sound from spreading from one panel of glass to another.



It blocks out disturbing noise from outside and transforms your home into a peaceful living space . Acoustic glazing contains a special plastic film that prevents sound from traveling from one panel of glass to another. It acts as a barrier and reduces outside noise.

Advantages:
• A calm and peaceful interior space
• Improves sleep and reduces stress

Standard acoustic comfort
Specific to glazing that offers acoustic reduction of over 35 dB

Advanced acoustic comfort
Specific to glazing that offers acoustic reduction greater than 38 dB
