Harmonic Doors
ADF SublimAL MB86 FL

The ADF SublimAL MB86 FOLD LINE HD system of harmonic doors can perfectly combine the interior (home, cafe, restaurant) with the terrace or garden space. Folding doors can be opened both outwards and inwards. It is a modern product with excellent technical parameters, designed to meet the highest requirements of users, architects and builders. Increased compatibility with the ADF SublimAL MB86N window and door system.

Unbeatable benefits:

Energy performance: heat transfer coefficient up to Uw: 1,1 W/m 2 K

Security: burglary protection up to RC2

Construction depth: 86 mm frame 77 mm sash

Insulating glass max. 52 mm with DuraTherm thermal spacer

Maximum tightness testing: Class 4 (EN 12207)

Impermeability: Class 9A, 600 Pa (EN 12208)

Wind resistance: Class C1 (EN 12210)

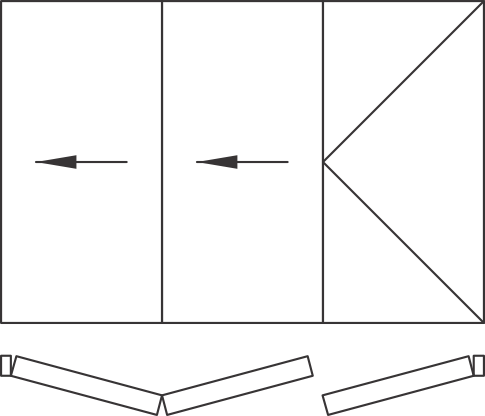

Typology

 2-2-0

3-3-0

3-3-1

4-4-0

4-3-1

4-2-2

4-1-3

5-5-0

5-4-1

5-3-2

6-6-0

6-5-1

6-4-2

6-3-3

7-7-0

7-6-1

8-8-0

8-7-1

8-6-2

8-5-3

Handles

Interior / exterior door handle with 8 mm spindle

Colors

You have a multitude of shades at your disposal to customize and harmoniously integrate the joinery with the architectural style. You can also opt for two-tone interior/ exterior profiles.

RAL Color Palette
